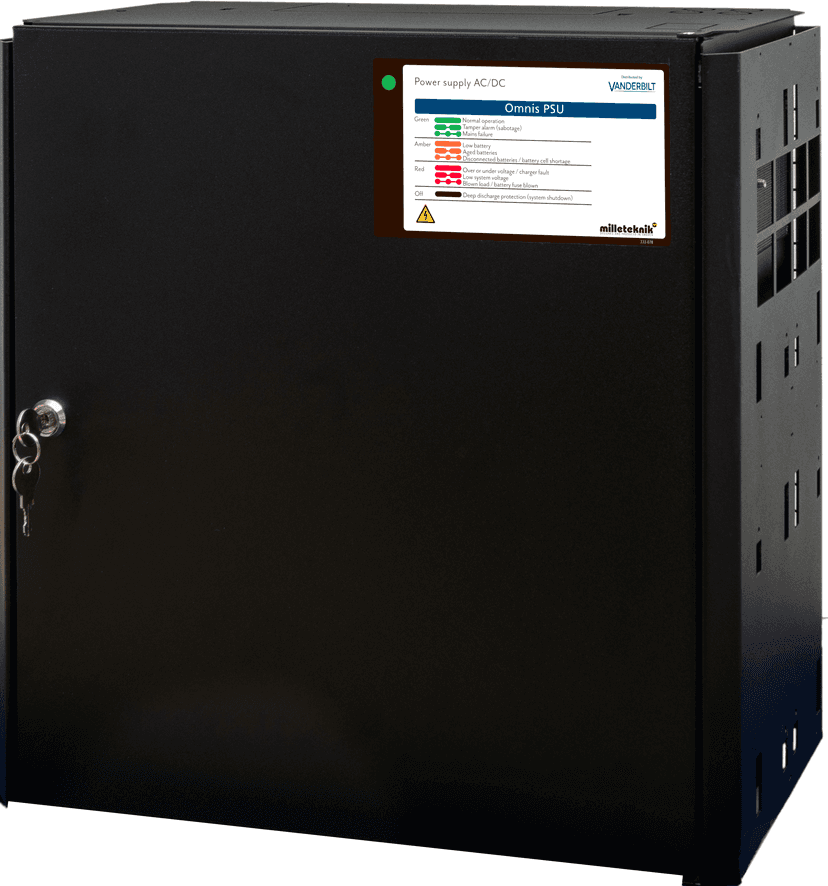

P15L Omnis PSU 15A Large
Partcode:
- N54506-Z113-A300
The P15L Omnis PSU is an SSF1014 approved 24V/5A PSU that is monitored
in the Omnis system via a RS485 interface. The cabinet can house 2x14Ah
batteries. Additional batteries can be added with the FLX Battery Box.
Battery
Space for 2 x 12V / 45Ah
Current
15A
Dimensions (L x W x H)
437 x 444 x 212 [mm]
Environmental class
Class I
Housing
Metal, black
Operating temperature
+5 to +40 C
Power output
27,3 VDC
Weight (without battery)
8 kg
