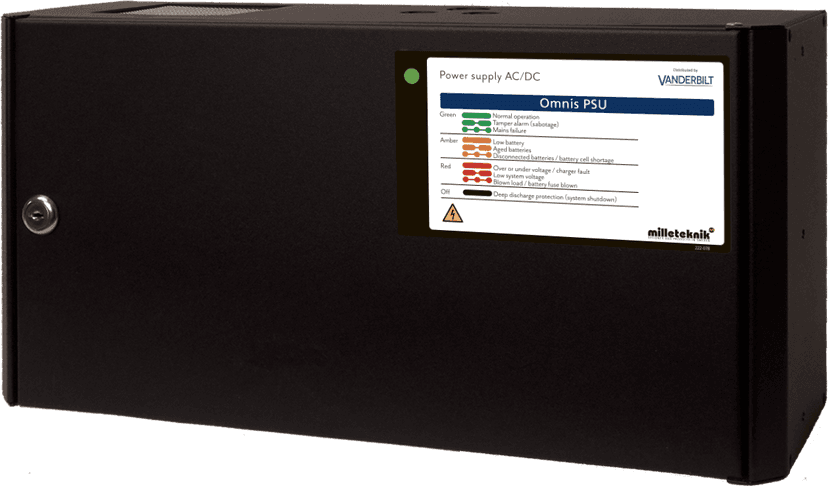

P5S - Omnis PSU 5A Small

Partcode:
  • N54506-Z110-A300
The P5S Omnis PSU is an SSF1014 approved 24V/5A PSU that is monitored in the Omnis system via a RS485 interface. The cabinet can house 2x14Ah batteries.
Technical dataDocumentationCertificatesImport & Export

  • Mains voltage

    230V AC

  • Operating temperature

    +5 to +40 ºC

  • Dimensions (W x H x D)

    437 x 222 x 145 mm

  • Weight (without battery)

    5,5 kg

  • Protection rating

    IP32

  • Power supply

    5A @ 27,3V DC

  • Mounting

    Wall-mount or Rack-mount (5U)

  • Battery

    2 x 14Ah

  • Number of on-board relays

    0

  • Additional components

    2 Free Expansion Slots

  • Interface

    OSDP over RS485

  • Power output

    2 Prioritized Outputs
