pm500em

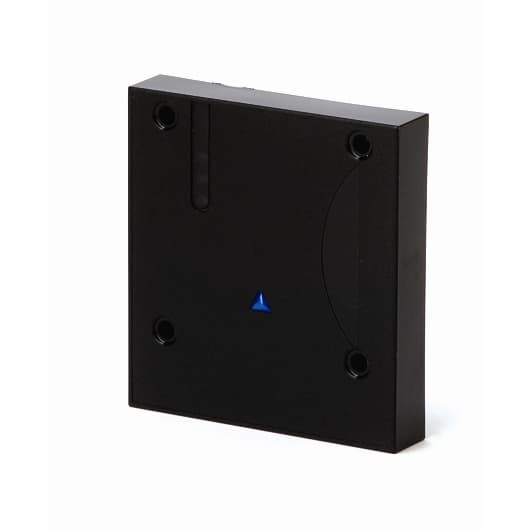

PM500-EM Prox 125kHz Reader panel mount

Partcode:
  • V24246-F3903-A1
The PM500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It is designed to fit most remote call point enclosures. It is supplied with a custom-machined perspex front panel for increased aesthetic appeal. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Technical dataDocumentationCertificatesImport & Export

  • Interface to controller

    BC-Link, Clock&Data or Wiegand* (*req.config card)

  • Card technology

    EM4102 (also known as Miro or UNIQUE 125 KHz)

  • Card compatibility

    IB41-EM, IB42-EM IB44-EM, IB45-EM

  • Card read distance

    Up to 5 cm

  • Indicators

    3 x LED (red/yellow/green) 1 x Buzzer

  • Keypad

    No

  • Operating voltage

    10.6 ~ 32 VDC

  • Current consumption

    20 mA @ 12V DC 24 mA @ 24V DC

  • Environment

    Indoor or outdoor use

  • Colour

    Black

  • Dimensions (W x H x D)

    68 x 73 x 13.5 (mm)

  • Weight

    0.15 kg

  • Tamper protection

    No

  • Operation temperature

    -30°C ~ +50°C

  • Housing material

    High impact polycarbonate outer casing, with encapsulated electronics

  • Housing protection (EN 60529)

    IP55

  • Tamper switch

    No

  • Operating temperature

    -30 ~ +50 °C

  • Housing

    High impact polycarbonate outer casing, with encapsulated electronics

  • Housing protection

    IP55
