pp500em

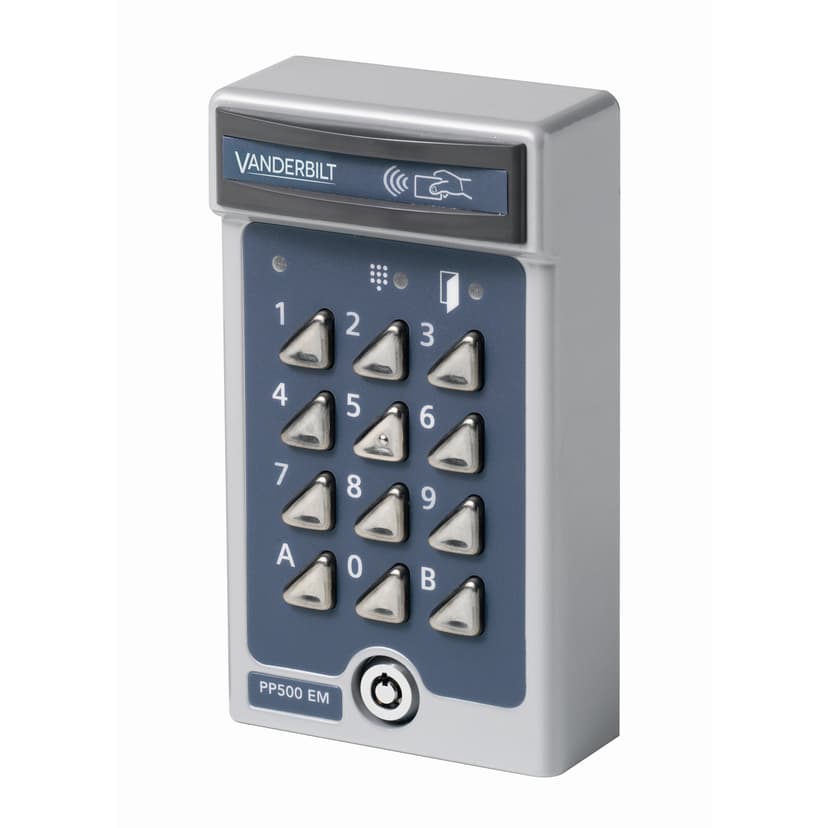

PP500-EM Prox 125kHz Reader with keypad

Partcode:
  • V54501-F1-A1
The PP500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It has a position indicator light and an illuminated keypad which makes it easy to use in dark places. It also includes a tamper switch for enhanced security. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Technical dataDocumentationCertificatesImport & Export

  • Interface to controller

    BC-Link, Clock&Data or Wiegand

  • Card technology

    EM4102 (also known as Miro or UNIQUE 125 KHz)

  • Card compatibility

    IB41-EM, IB42-EM, IB44-EM, IB45-EM

  • Card read distance

    Up to 5 cm

  • Indicators

    3 x LED (red/yellow/green) 1 x Buzzer

  • Keypad

    Stainless steel keys 0-9, A, B

  • Operating voltage

    12 ~ 24 VDC

  • Current consumption

    30 mA @ 12 VDC 17 mA @ 24 VDC

  • Environment

    Indoor or outdoor use

  • Colour

    Grey

  • Dimensions (W x H x D)

    80 x 140 x 40 (mm)

  • Weight

    1.35 kg

  • Tamper protection

    Yes

  • Operation temperature

    -30°C ~ +50°C

  • Housing material

    Cast metal with stainless steel keys and security lock

  • Housing protection (EN 60529)

    IP54

  • Tamper switch

    Yes

  • Operating temperature

    -30 ~ +50 °C

  • Housing

    Cast metal with stainless steel keys and security lock

  • Housing protection

    IP54
