Access Control/Systems/SiPass Integrated/Card readers/Proximity 125kHz
pr500em

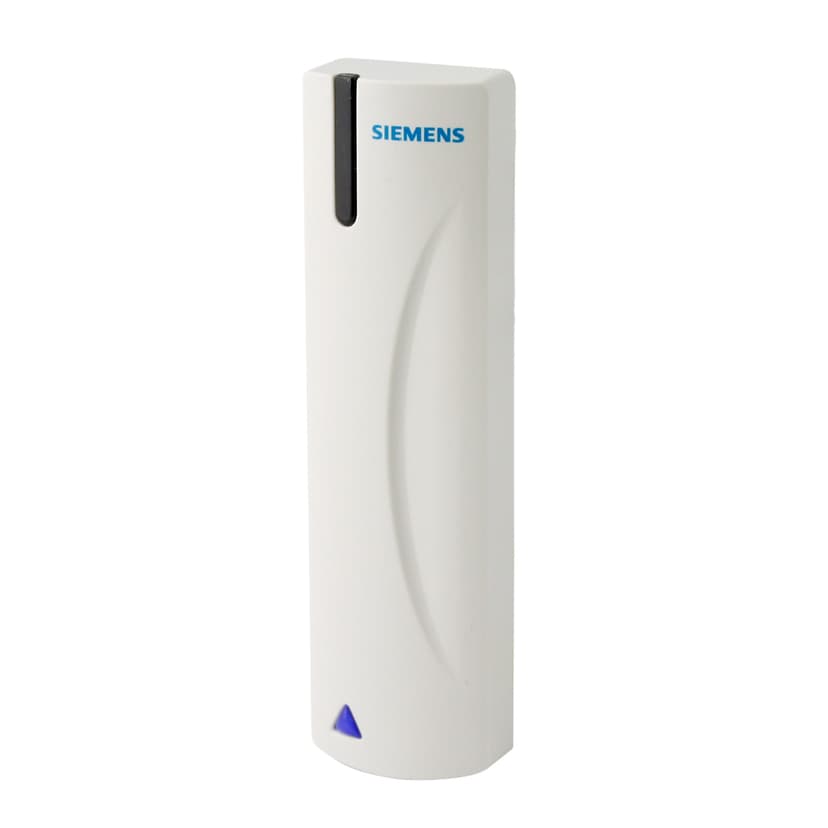

PR500-EM Prox 125kHz Mullion Reader

Partcode:
  • V24246-F3913-A1
The PR500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It has slim and compact design and blends in well in many environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Technical dataDocumentationCertificatesImport & Export

  • Interface to controller

    BC-Link, Clock&Data or Wiegand* (*req.config card)

  • Card technology

    EM4102 (also known as Miro or UNIQUE 125 KHz)

  • Card compatibility

    IB41-EM, IB42-EM IB44-EM, IB45-EM

  • Card read distance

    Up to 10 cm

  • Indicators

    3 x LED (red/yellow/green) 1 x Buzzer

  • Keypad

    No

  • Operating voltage

    10.6 ~ 32 VDC

  • Current consumption

    22 mA @ 12V DC 25 mA @ 24V DC

  • Environment

    Indoor or outdoor use

  • Colour

    White

  • Dimensions (W x H x D)

    40 x 140 x 18.5 (mm)

  • Weight

    0.11 kg

  • Tamper protection

    No

  • Operation temperature

    -30°C ~ +50°C

  • Housing material

    ABS base with clip on ABS front cover

  • Housing protection (EN 60529)

    IP55

  • Tamper switch

    No

  • Operating temperature

    -30 ~ +50 °C

  • Housing

    ABS base with clip on ABS front cover

  • Housing protection

    IP55
