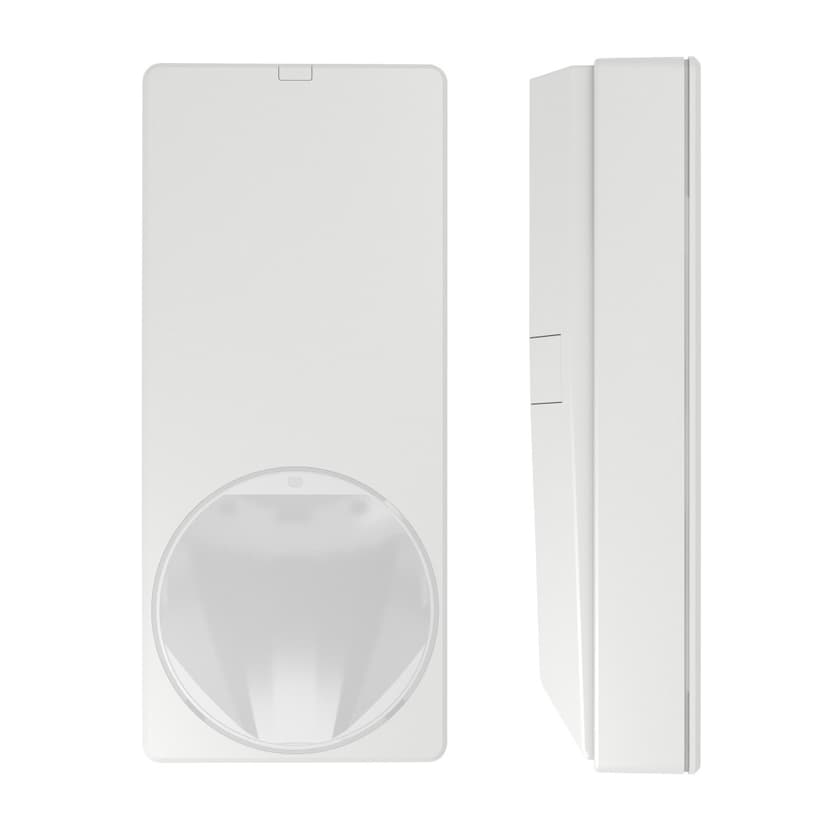

PDM-IXA18 DUAL detector 10.525GHz

Partcode:
  • V54531-F119-A100
MAGIC motion detector PDM-IXA18 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of in-truders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Technical dataDocumentationCertificatesImport & Export

  • Detection characteristics / range

    Volumetric / 18 m

  • Optical system

    MAGIC mirror

  • Microwave (MW)

    10.525 GHz

  • Approval

    EN50131-2-4 grade 2

  • Pet immunity

    yes (option)

  • Supply voltage

    9 ~ 16 VDC (12 V nom.)

  • Current consumption

    4.8 mA (rms) 9.0 mA (max peak)

  • Sensitivity evaluation mode

    6 settings

  • Outputs

    30 VDC / 100 mA, NC

  • Walk test input

    LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ

  • Set/unset input

    LOW ≤ 1,5 V / HIGH ≥ 3,5 V RPull-up (internal) = 470 kΩ

  • Walking speed

    0,2 ... 3,0 m/s / 0,2 ... 3,0 m/s

  • EOL resistor

    RI = 4.7 kΩ ±5%, 250 mW RF = 2.2 kΩ ±5%, 250 mW REoL = 4.7 kΩ ±5%, 250 mW

  • Operating temperature

    - 10° ~ + 55°C

  • Air humidity (EN 60721)

    < 95% RH, non-condensing

  • Storage temperature

    - 20° ~ + 60°C

  • Housing protection (EN 60529)

    IP41 / IK02

  • Dimensions (W x H x D)

    64 x 147 x 35 (mm)

  • Weight

    0.12 kg

  • Colour

    RAL9003
