spcw130

SPCW130.100 SiWay RF-Expander (Not Compatible with 2-Way Wireless)

Partcode:
  • V54554-F101-B100

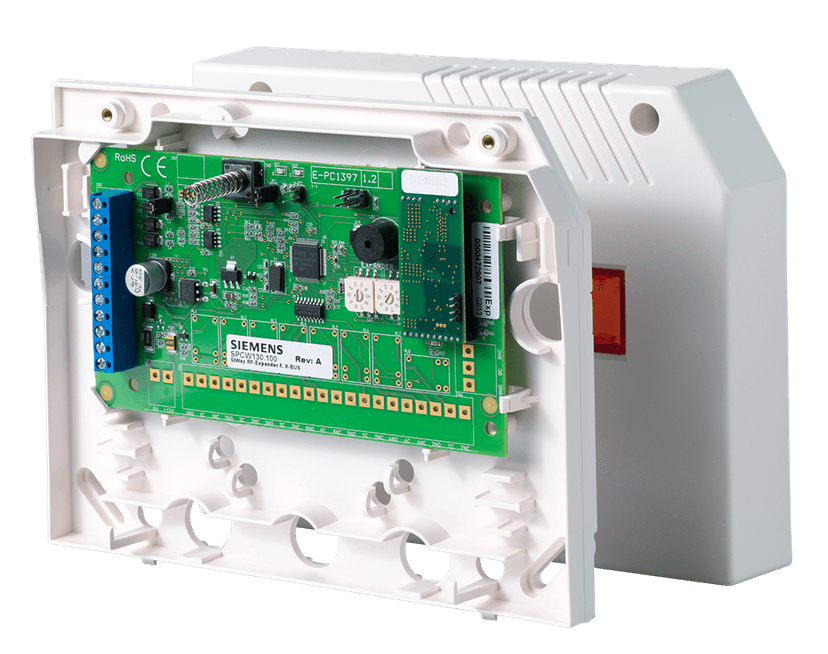

The SPCW130.100 SiWay RF-expander is connected to the X-BUS and provides a wireless access point for the Intrunet wireless detectors and remote controls linked to the system.The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Technical dataDocumentationImport & Export

  • Colour

    RAL 9003 (signal white)

  • Dimensions (W x H x D)

    200 x 153 x 47 (mm) (housing),150 x 82 x 20 mm (PCB)

  • Operating temperature

    -10 ~ +50 °C

  • Weight

    0.340 kg

  • Interfaces

    X-BUS (in, out, branch)

  • Mounting

    Flat surface, wall-mounted

  • Tamper contact

    Front spring tamper

  • Operating voltage

    9.5 ~ 14 VDC

  • Operating current

    Max. 60 mA at 12 VDC

  • Quiescent current

    Max. 60 mA at 12 VDC

  • Tamper switch

    Ja
