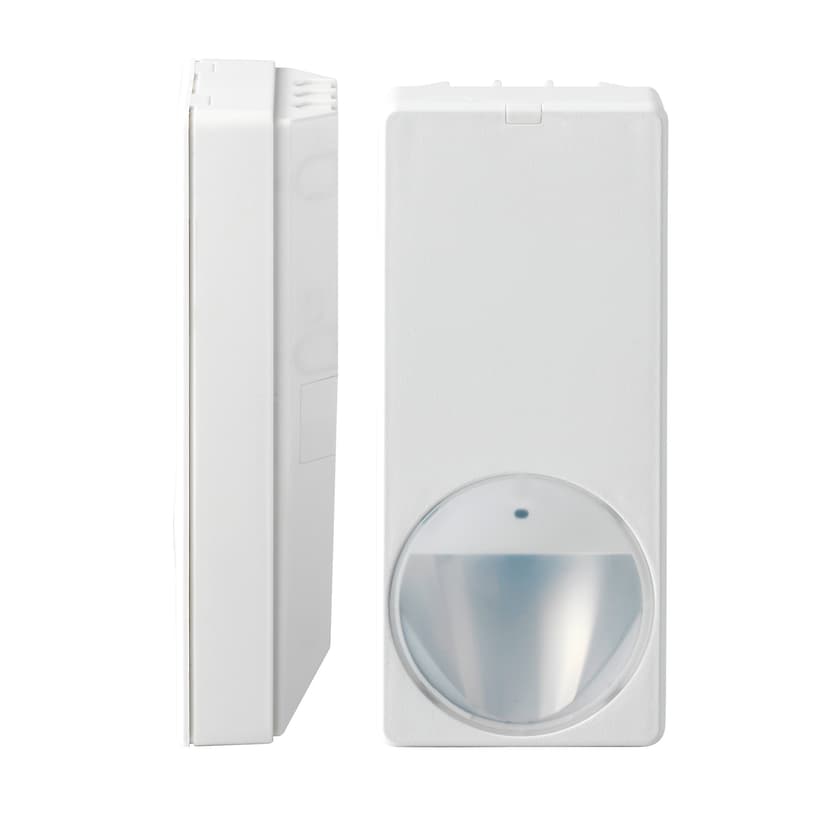

PDM-I12T(50) PIR AM detector (50pcs)

Partcode:
  • L54543-F105-A100
Product information "PDM-I12T PIR AM detector" Multi-pack of 50 pieces of the MAGIC motion detector PDM-I12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error- free due to features like Auto Walktest and new End-of-Line concept (EoL).
Technical dataDocumentationImport & Export

  • Set/unset input

    LOW ≤ 1.5V / HIGH ≥ 3.5V

  • Approval

    EN50131-2-2 Grade 3 VdS Class C

  • Colour

    RAL9003

  • Supply voltage

    9 ~ 16VDC (12V nom.)

  • Current consumption

    3.9mA (rms) 6.6mA (max peak)

  • Outputs

    30VDC / 100mA, NC

  • Walk test input

    LOW ≤ 1.5V / HIGH ≥ 3.5V

  • Walking speed

    0.1 ~ 4m/s

  • Sensitivity evaluation mode

    4 settings

  • EOL resistor

    RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW

  • Operating temperature

    -10° ~ +55°C

  • Air humidity (EN 60721)

    < 85% RH, non-condensing

  • Storage temperature

    -20°C ~ +60°C

  • Weight

    0.095kg

  • Housing protection

    IP41 / IK02

  • Pet immunity

    Yes (optional)

  • Optical system

    MAGIC mirror

  • Range

    Volumetric / 12m

  • Dimensions (L x W x H)

    57 x 128 x 32 (mm)
