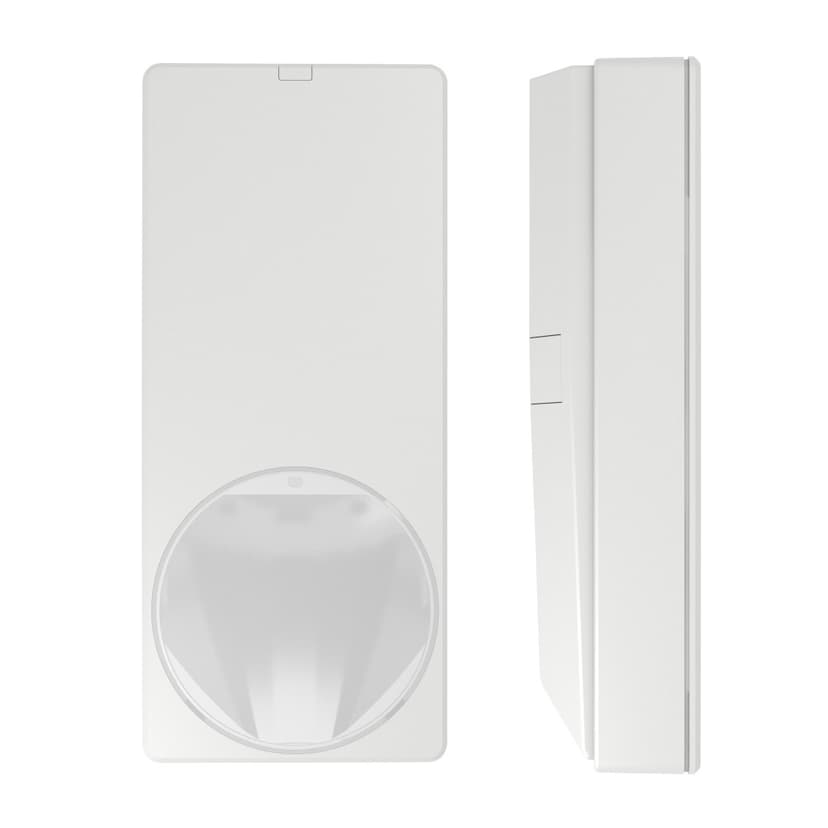

PDM-I18 PIR detector

Partcode:
  • V54530-F106-A100
MAGIC motion detector PDM-I18 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Technical dataDocumentationCertificatesImport & Export

  • Detection characteristics / range

    volumetric / 18 m

  • Optical system

    MAGIC mirror

  • Approval

    EN50131-2-2 Grade 2 VdS Class B

  • Pet immunity

    no

  • Supply voltage

    9 ... 16VDC (12V nom.)

  • Current consumption

    2.5mA (rms) 4.7mA (max. peak)

  • Sensitivity evaluation mode

    4 settings

  • Outputs

    30VDC / 100mA, NC

  • Walk test input

    LOW ≤ 1.5V / HIGH ≥ 3.5V

  • Set/unset input

    LOW ≤ 1.5V / HIGH ≥ 3.5V

  • Walking speed

    0.2 ~ 3m/s

  • EOL resistor

    RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW

  • Operating temperature

    -10° ~ +55°C

  • Air humidity (EN 60721)

    < 85% RH, non-condensing

  • Storage temperature

    -20° ~ +60°C

  • Housing protection (EN 60529)

    IP41 / IK02

  • Dimensions (W x H x D)

    64 x 147 x 35 (mm)

  • Weight

    0.115kg

  • Colour

    RAL9003
