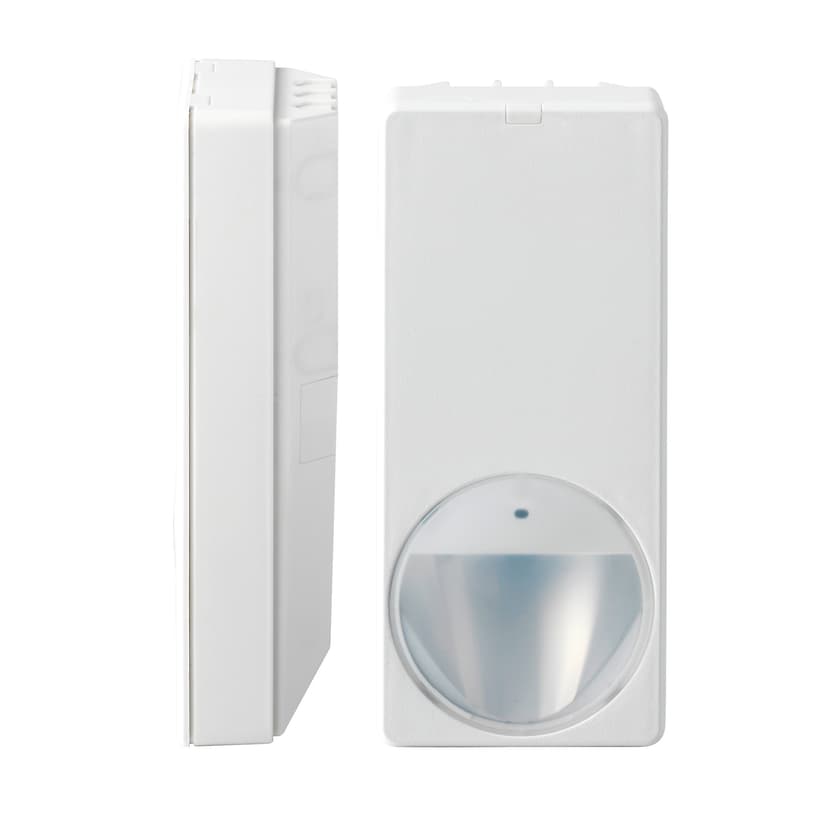

PDM-I18T(50) PIR AM detector (50pcs)

Partcode:
  • L54543-F107-A100
Product information "PDM-I18T PIR AM detector" Multi-pack of 50 pieces of the MAGIC motion detector PDM-I18T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error- free due to features like Auto Walktest and new End-of-Line concept (EoL).
Technical dataDocumentationImport & Export

  • Air humidity (EN 60721)

    < 85% RH, non-condensing

  • Supply voltage

    9 ~ 16VDC (12V nom.)

  • Outputs

    30VDC / 100mA, NC

  • Walk test input

    LOW ≤ 1.5V / HIGH ≥ 3.5V

  • Set/unset input

    LOW ≤ 1.5V / HIGH ≥ 3.5V

  • EOL resistor

    RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW

  • Operating temperature

    -10 ~ +55°C

  • Pet immunity

    no

  • Detection characteristics / range

    Volumetric / 18m

  • Weight

    0.115kg

  • Approval

    EN50131-2-2 Grade 3 VdS Class C

  • Current consumption

    3.9mA (rms) 6.6mA (max. peak)

  • Dimensions (W x H x D)

    64 x 147 x 35 (mm)

  • Walking speed

    0.1 ~ 4m/s

  • Colour

    RAL9003

  • Housing protection

    IP41 / IK02

  • Sensitivity evaluation mode

    4 settings

  • Optical system

    MAGIC mirror

  • Storage temperature

    -20° ~ +60°C
