Value Line PIR, 15m, PI
Partcode:
- VL-PIR15PI

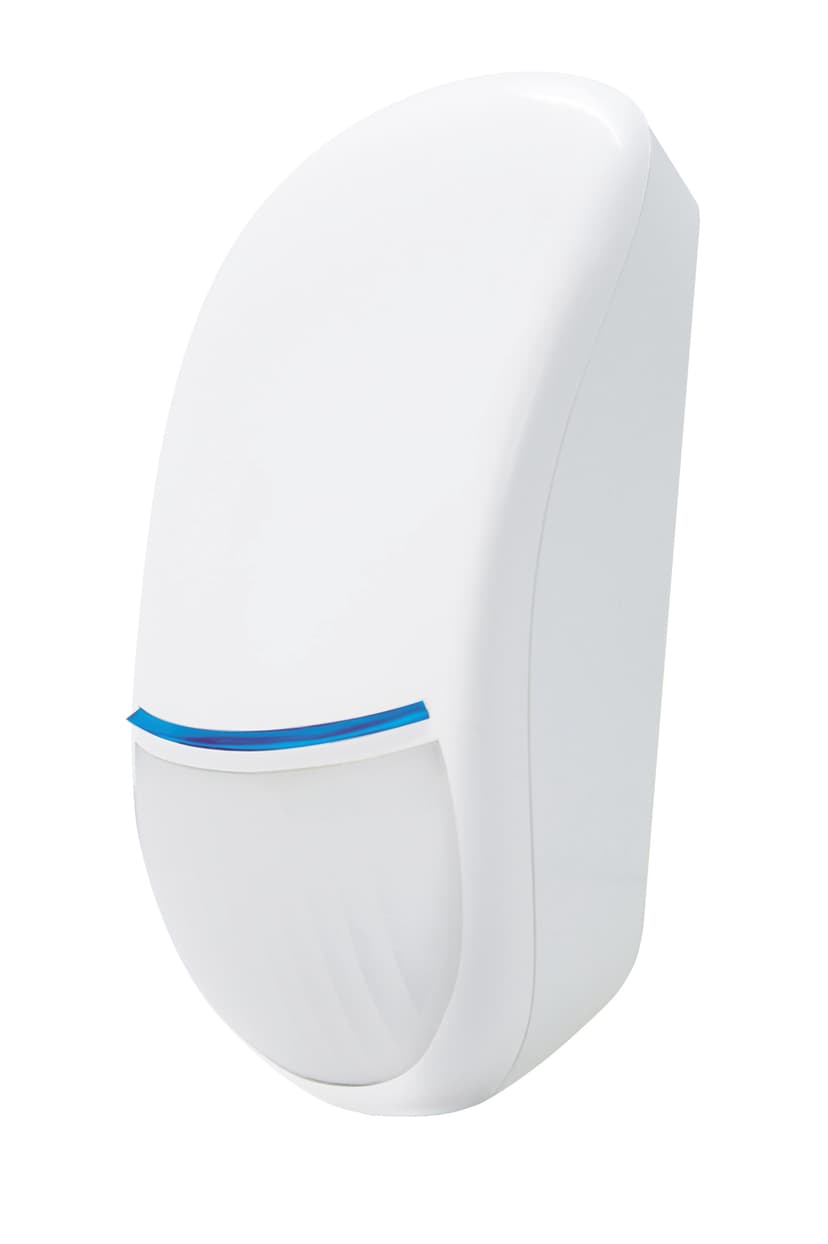

This PIR motion detector is ideal for both residential and low commercial applications. It uses a digital pyro element, eliminating the need for signal conversion, and provides an accurate detection of intrusions. Featuring a lens with Fresnel Technologies it ensures quality and efficiency. The detector is also pet-immune within a 15-meter range and 100-degree angle.
Dimensions (W x H x D)
114 x 63 x 40mm
Operating temperature
-10°C to +55°C
Housing protection
IP 3X
Current consumption
max. 25 mA
Power supply
9-15 VDC
Optical system
LODIFF Fresnel Lens Technology
Detection characteristics / range
7m or 15m
EOL resistor
4K7,4K7 or user selectable Dual EOL values
Relative humidity
< 93% without condensation
Approval
EN grade 2 (pending)
Horizontal angle of view
100°
Mounting
2m to 2.2m
LED Indicators
blue
Tamper switch
Front and Back Tampers
Housing material
ABS
Pet immunity
Yes, up to 15kg
Weight
82g (including packaging)
