spck420100

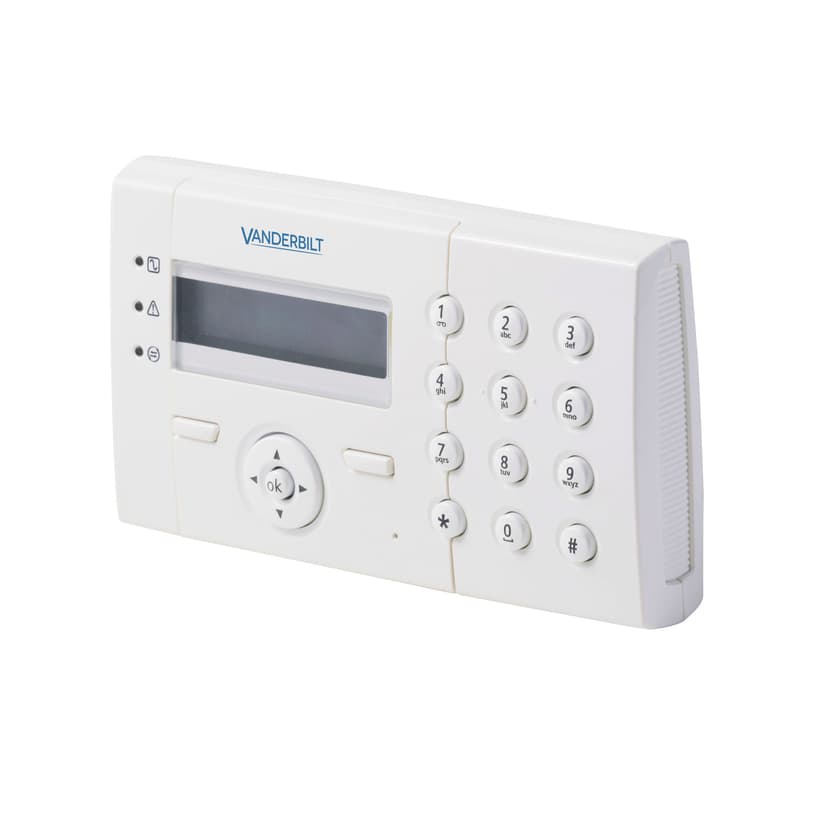

SPCK420.100 LCD keypad.2x16 Char.

Partcode:
  • V54543-F101-A100
The SPCK420.100 LCD keypad provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad.
Technical dataDocumentationSoftwareCertificatesImport & Export

  • LCD Display

    2 x 16 characters

  • LED Indicators

    3 status LEDs

  • Interfaces

    X-BUS (in, out)

  • Tamper contact

    Front / back spring tamper

  • Operating voltage

    9.5 ~ 14 VDC

  • Operating current

    Max. 90 mA at 12 VDC (backlight, LEDs, sounder operated)

  • Quiescent current

    Max. 45 mA at 12 VDC

  • Mounting

    Flat surface, wall-mounted

  • Operating temperature

    5° ~ +40 °C

  • Colour

    RAL 9003 (signal white)

  • Weight

    0.210 kg

  • Dimensions (W x H x D)

    148 x 85 x 33 mm

  • Housing

    Plastic housing (ABS)

  • Special keys

    2 soft keys, 1 multi-dimensional navigation key

  • Radio module

    Optional (SPCW112)
