spck520.100n

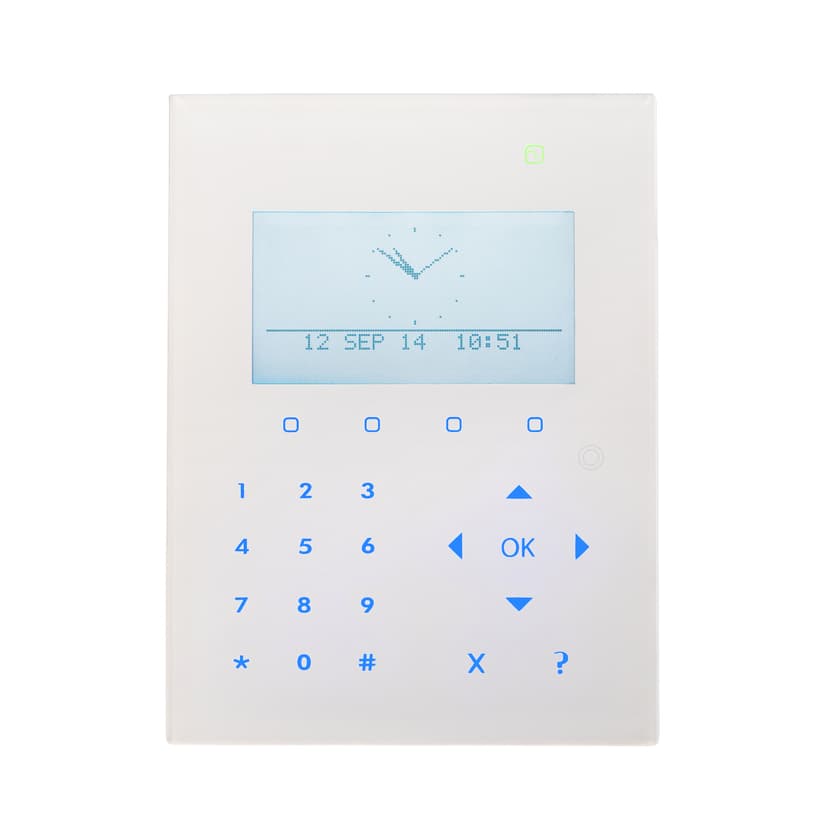

SPCK520.100-N Compact Keypad Neu.

Partcode:
  • V54543-F115-A100
The SPCK520.100-N Compact Keypad is slim, stylish and feature packed. With touch key technology, the 4 soft keys and navigation keys allow easy operation with a minimum number of steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. The integrated speaker enhances the user experience with audio annunciation. Customer logo, emergency or quick set functions can be displayed in idle state. Various mounting options and accessories provide a complete keypad interface.
Technical dataDocumentationSoftwareCertificatesImport & Export

  • LCD Display

    128 x 64 pixels (approx. 6 x 20 characters)

  • Keypad

    Touch key technology

  • LED Indicators

    5 status LEDs

  • Audio

    Supported via integrated speaker

  • Interfaces

    X-BUS (in, out)

  • Tamper contact

    Front / back tamper

  • Operating voltage

    9.5 ~ 14 VDC

  • Operating current

    Max. 210 mA at 12 VDC (backlight, LEDs, voice annunciation operated)

  • Quiescent current

    Max. 55 mA at 12 VDC

  • Mounting

    Flat surface, wall-mounted or flush mounted using SPCY520 / SPCY521

  • Operating temperature

    5 ~ +40 °C

  • Colour

    RAL 9003 (signal white)

  • Weight

    0.250 kg

  • Dimensions (W x H x D)

    110 x 150 x 17.5 (mm)

  • Housing

    Plastic housing (PMMA, PC ABS, ABS)

  • Special keys

    4 soft keys, 1 multi-dimensional navigation key
