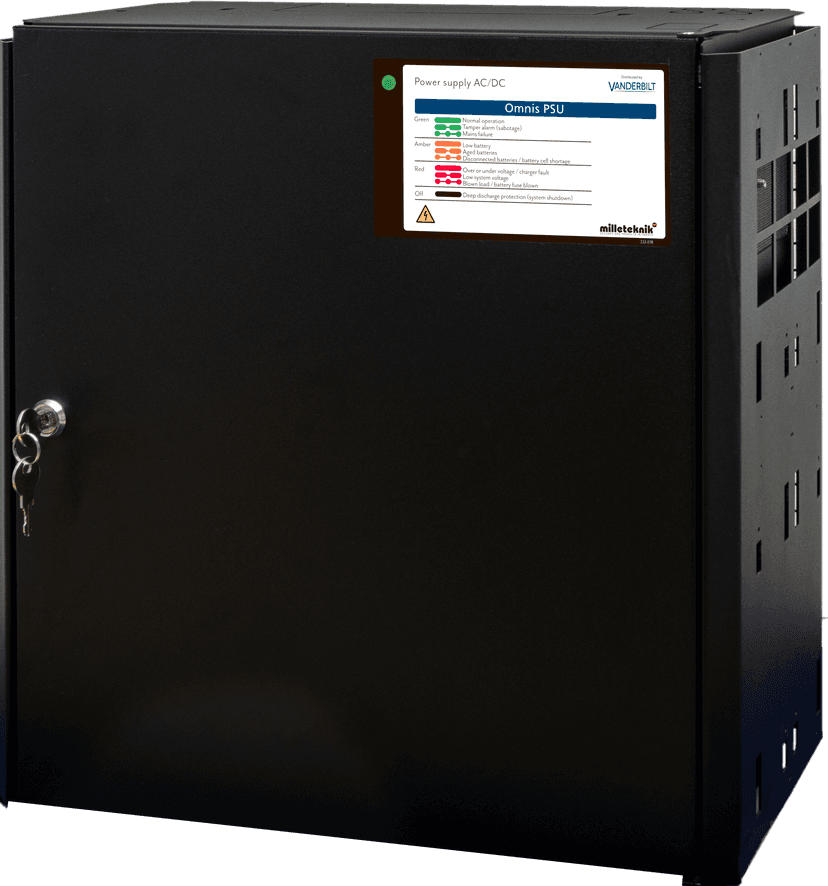

P5L - Omnis PSU 5A Large
Partcode:
- N54506-Z111-A300
The P5L Omnis PSU is an SSF1014 approved 24V/5A PSU that is monitored in
the Omnis system via a RS485 interface. The cabinet can house 2x14Ah
batteries. Additional batteries can be added with the FLX Battery Box.
Additional components
5 Prioritized Load Outputs & 1 available Expansion Slot
Battery
2 x 45Ah (not included)
Dimensions (W x H x D)
437 x 444 x 212 (mm)
Interface
OSDP over RS485
Mains voltage
230V AC
Mounting
Wall-mount or Rack-mount (10U)
Number of on-board relays
0
Power output
Including Additional Components: 2 + 5 Prioritized Outputs
Power supply
5A @ 27,3V DC
Protection rating
IP32
Weight
13 kg
