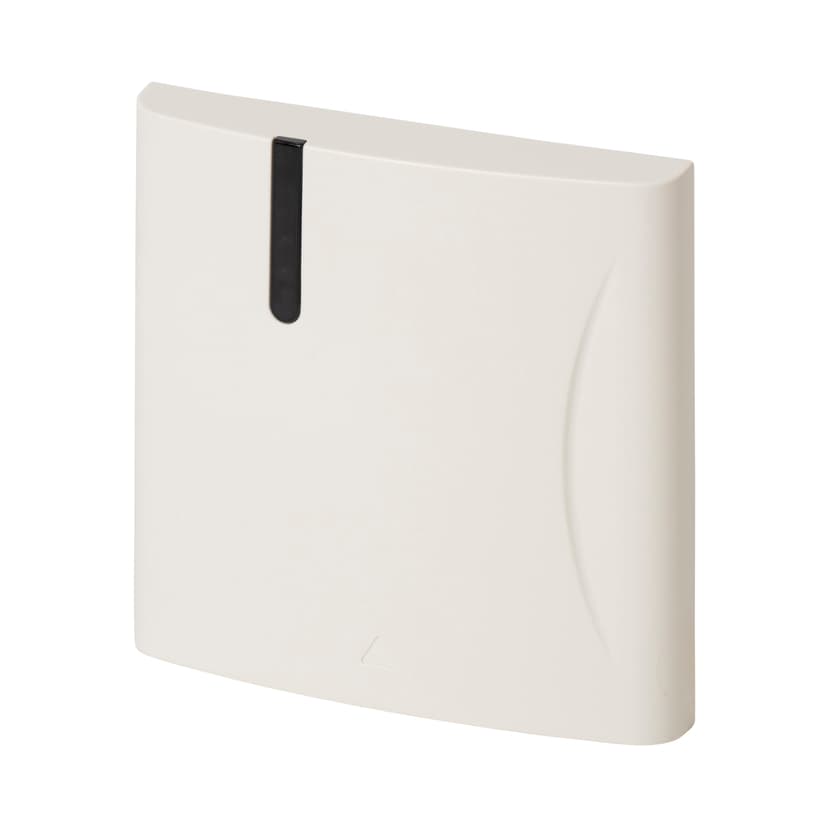

SP100-Cotag Switch Plate Reading Head
Partcode:
- VGBI:50-512
The SP100-Cotag is a switch-plate proximity reading head that is designed for mounting in a single-gang flush-mounted electrical
backbox. It has a reading range of up to 30 cm.
Interface to controller
RF
Tamper switch
No
Card technology
Cotag
Card compatibility
0911‚ 0928-0‚ 0958-101‚ 0981‚ 0968-0
Card read distance
Up to 29 cm with active card. Up to 9 cm with passive card.
Indicators
3 x LED (red/yellow/green) 1 x Buzzer
Keypad
No
Operating temperature
-30 to +50 °C
Environment
Indoor or outdoor use
Housing protection
IP55
Housing
ABS base with clip on ABS front cover
Colour
White
Dimensions (W x H x D)
86 x 86 x 14 mm
Weight
0.11 kg
Approval
CE
