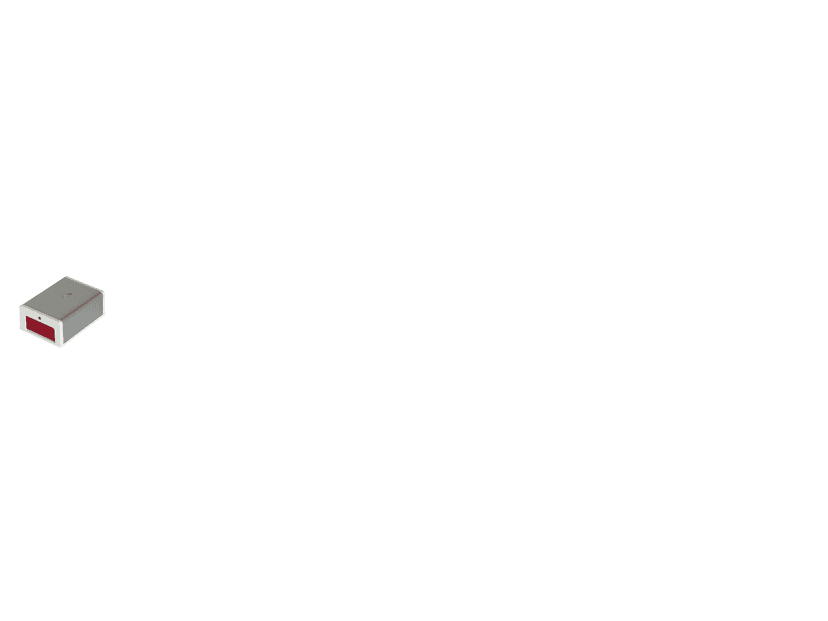

484 Panic button, optical indicator
Partcode:
- S54543-Z104-A100
Reed button designed for the silent signaling of robberies in action. By pushing the button, a magnet gets close to the internal
reed and opens the contact, thus triggering the alarm. Self-protection against opening through internal reed. Internal reeds are
designed for NC operation. Simplified installation thanks to the two-sided tape included.
LED memory with central reset (by cutting power supply), button with spring return, 6-terminal connection: 2 for contact, 2 for
ant-tampering, 2 for power supply
Power supply
12 VDC
Current consumption
10 mA
Contact rating
Max. 1 A / 75 V
Operating temperature
+5 ~ +40° C
Housing protection
IP32
Housing material
Thermoplastic
Colour
White
Dimensions (L x W x H)
72 x 52 x 28 (mm)
Weight
0.070 kg
