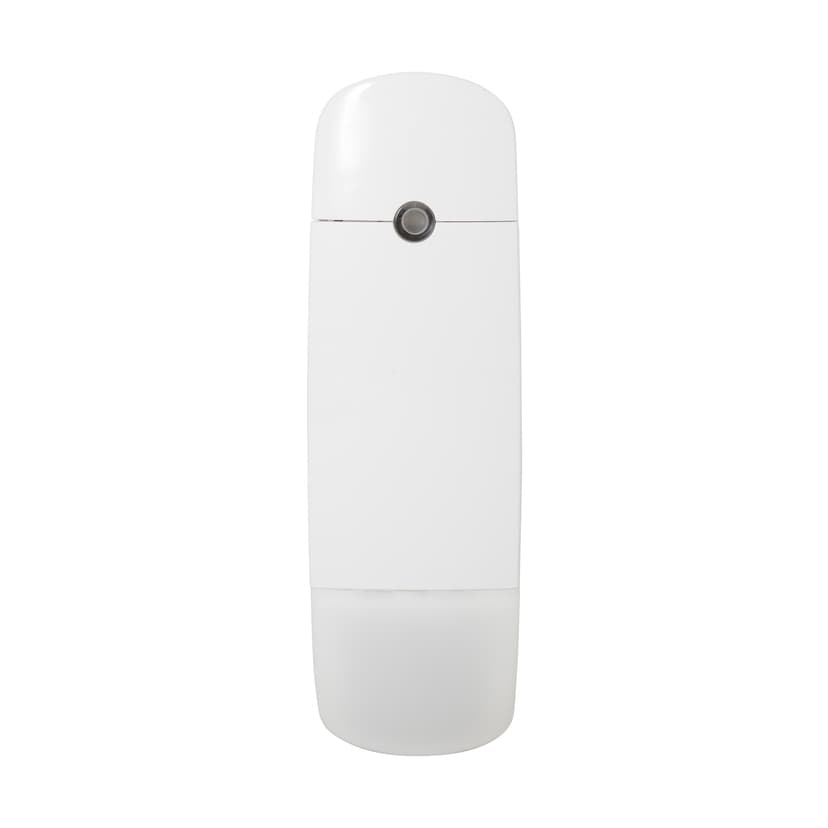

WPIR-CRT Wireless curtain PIR detector
Partcode:
- V54538-F110-A200
The WPIR-CRT wireless detector is a passive infrared curtain motion detector which is supported by the acre Intrusion system. The device has a 12m detection range and a 6° detection angle. The device has firmware configurable settings such as sensitivity, pulse count, supervision time and LED behavior.
Current consumption
Standby ~11 μA Receive mode ~10 mA Transmit mode ~45 mA
Detection characteristics / range
12 meter @ 6°
Dimensions (L x W x H)
103mm x 31.5mm x 34.5mm
Operating temperature
- 10 to +50°C
Weight
110 g (battery included)
Automatic power saving
Yes
Battery type
3V Lithium CR123A
Transmit power
~14dBm
Event transmission
Alarm, Tamper, Supervision, Low Battery
Supervision time
7min by default (programmable between 1 to 30 minutes)
LED Indicators
Red LED: PIR activated Green LED : Walk test
Battery life
up to 7 years
Frequency
868-869Mhz
Optimal installation height
2.1 to 2.3m
Range
up to 1200m in open air
