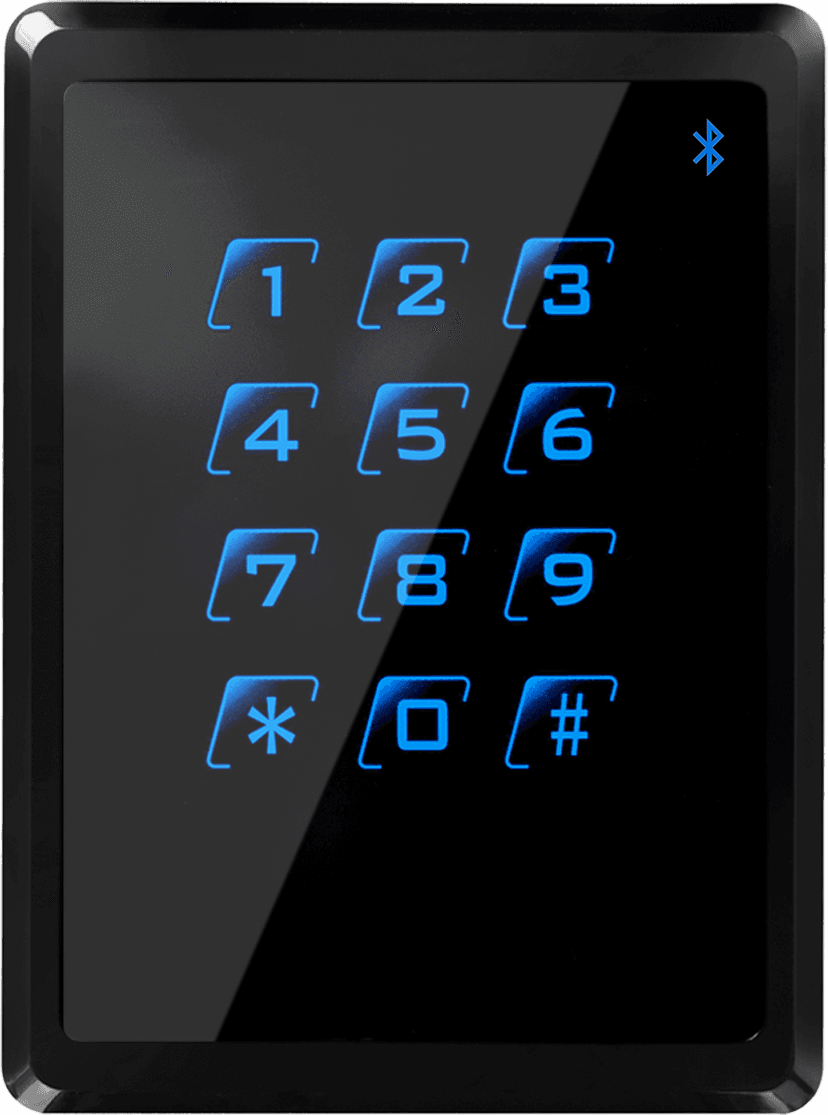

Bluetooth Reader Image (with keypad)

BLUE-B Bluetooth Reader, Wiegand,Keypad

Partcode:
  • N54504-Z161-A100
Vanderbilt’s range of Bluetooth Readers is a secure and flexible identification solution bringing the access credential to Android and iOS smartphones. Bluetooth Low Energy (BLE) is transforming the future of access control and removes the need for a physical card or tag. Simultaneous support of smartphones and a wide range of smart cards bridges the gap from traditional access credentials to cardless mobile access control and allows a seamless integration into existing locations. Available communication interfaces: • BLUE-A: Wiegand • BLUE-B: Wiegand (with keypad) • BLUE-C: OSDP • BLUE-D: OSDP (with keypad)
Technical dataDocumentationCertificatesImport & Export

  • Approval

    Bluetooth SIG, CE, RoHS, REACH and FCC

  • Buzzer

    Internal audio indicator

  • Cable length

    max. 150m (AWG-22)

  • Card compatibility

    ACT encoded credentials (MF10C1, MF10T1, EV10C1). CSN from MIFARE Ultralight®, MIFARE® Classic, MIFARE Plus®, MIFARE® DESFire® EV1, EV2, EV3. Third party encoded credentials are not supported.

  • Card read distance

    MIFARE Classic: 3cm-5cm ( read UID/private ID); DESFire EV1, EV2: 1.5cm-4cm (read UID/private ID)

  • Dimensions (L x W x H)

    115.5mm x 84.5mm x 20.5mm

  • Frequency

    13.56 MHz, ISO14443 types A & B, 2.4 GHz Bluetooth® (Low Energy)

  • Housing material

    PC, ABS

  • Housing protection

    IP65 level – water-resistant with waterproof electronics

  • Interface to controller

    Wiegand (32-bit)

  • LED Indicators

    3 RGB LEDs

  • Operating temperature

    - 30°C to + 70°C

  • Power consumption

    160mA (max.)

  • Power supply

    9VDC to 15VDC

  • Tamper protection

    Hall effect switch

  • Keypad

    Capacitive touch keypad

  • Installation

    Indoor / outdoor

  • Weight

    0.292kg
