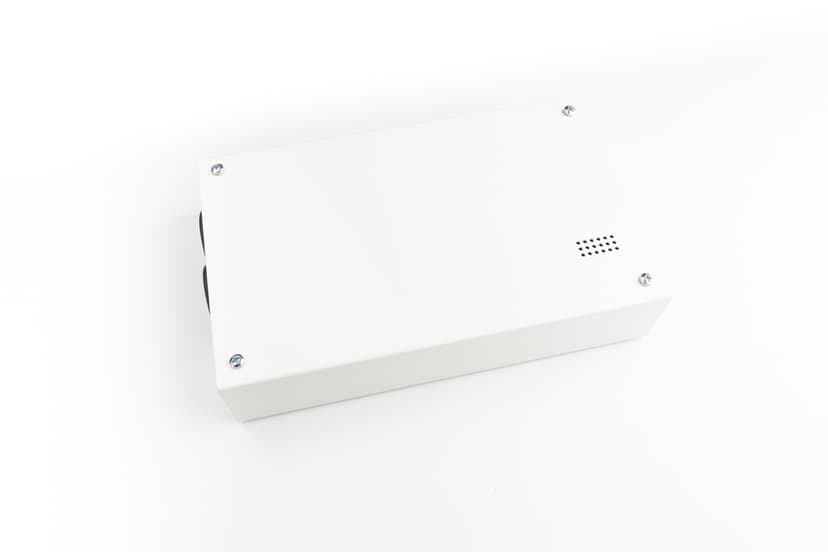

Edge RT7020
Partcode:
- N54506-Z104-A100
Edge RT7020 combines advanced and fast router technology with international certification for alarm transmission of intruder and fire alarms. The 4G router is equipped with WAN and VLAN functions to manage the fact that buildings and systems are increasingly connected online. IOT offers completely new communication opportunities for technologically mature companies to gain an overview of all their security systems in real time.
To connect to an Omnis E100 or E100-S, the following cable is required (sold separately):
01-AC Alarm Transmitter Cable (N54513-F117-A100).
To connect to an Omnis E100 or E100-S, the following cable is required (sold separately):
01-AC Alarm Transmitter Cable (N54513-F117-A100).
Approval
Grade 1-4 SSF114
Power supply
7,2 - 28 VDC
Alarm transmission protocols IP
SIA, ContactID, ESPA
Communication protocol
To E100: Addsecure over ESPA 4.4.4
Outputs
5
Inputs
8
Alarm transmission paths
Ethernet + Mobile
Frequency
GSM (2G): 900/1800 Mhz, UMTS (3G): 900/2100 Mhz, LTE (4G): 800/900/1800/2100/2600 MHz
Dimensions (W x H x D)
215 x 45 x 135 (mm)
Operating temperature
-5 to +40 °C
Housing material
Metal
Interfaces
1x WAN for alarm communication and 4x LAN with VLAN technology and VPN (not standard)
Weight
1,2 kg
