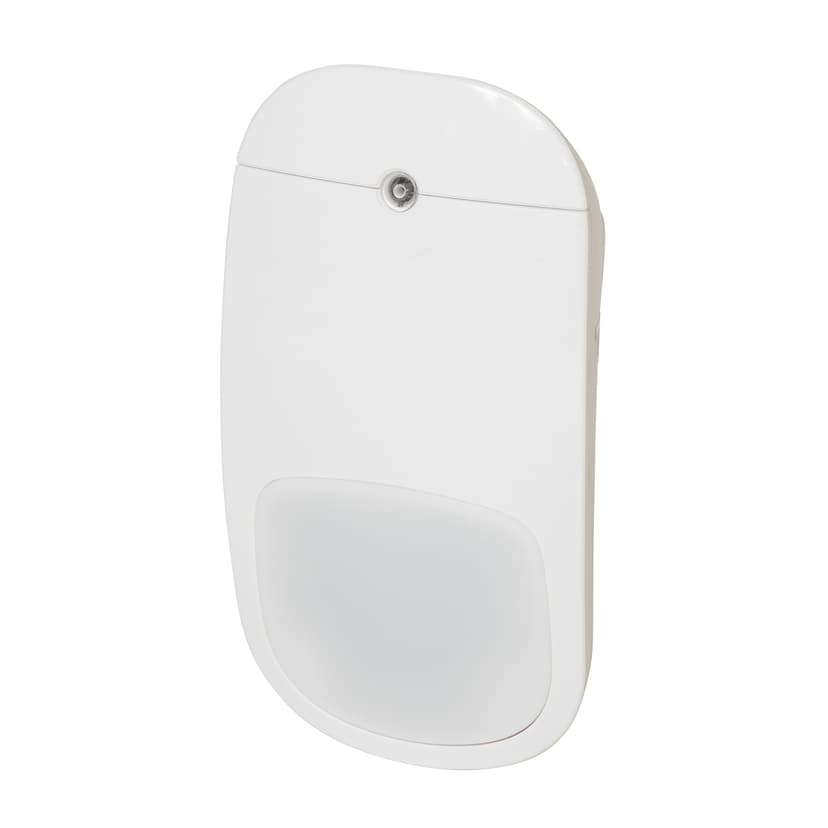

WPIR Wireless 12m PIR detector PET

Partcode:
  • V54538-F109-A100
The WPIR wireless detector is a passive infra red quad element motion detector which is supported by the acre Intrusion system. The device has a 12m detection range and has firmware configurable settings such as Sensitivity, Pulse Count, Supervision Time, LED operation and Pet Immunity.
Technical dataDocumentationCertificatesImport & Export

  • Weight

    135 g

  • Dimensions (L x W x H)

    108 x 58 x 42.5 (mm)

  • Max. pet weight

    up to 25 Kg

  • Operating temperature

    -10 ~ +50 °C

  • Frequency

    868 - 869 Mhz

  • Current consumption

    Standby ~11 µA Receive mode ~24 mA Transmit mode ~45 mA

  • Detection characteristics / range

    12 meter

  • Battery type

    Lithium 3V battery type CR123A

  • Range

    500 m

  • Automatic power saving

    Yes

  • Transmit power

    ~ 14dBm

  • Supervision time

    7 min by default (programmable between 1 to 30 min)

  • Event transmission

    Alarm, Tamper, Supervision, Low Battery

  • Pet immunity

    25Kg

  • Battery life

    5 Years

  • Optimal installation height

    2.1m to 2.3m

  • LED Indicators

    Red LED: PIR Activated Green LED: Walktest
