Intrusion/Systems/acre Intrusion/Detectors/External Motion Detectors
proe45h

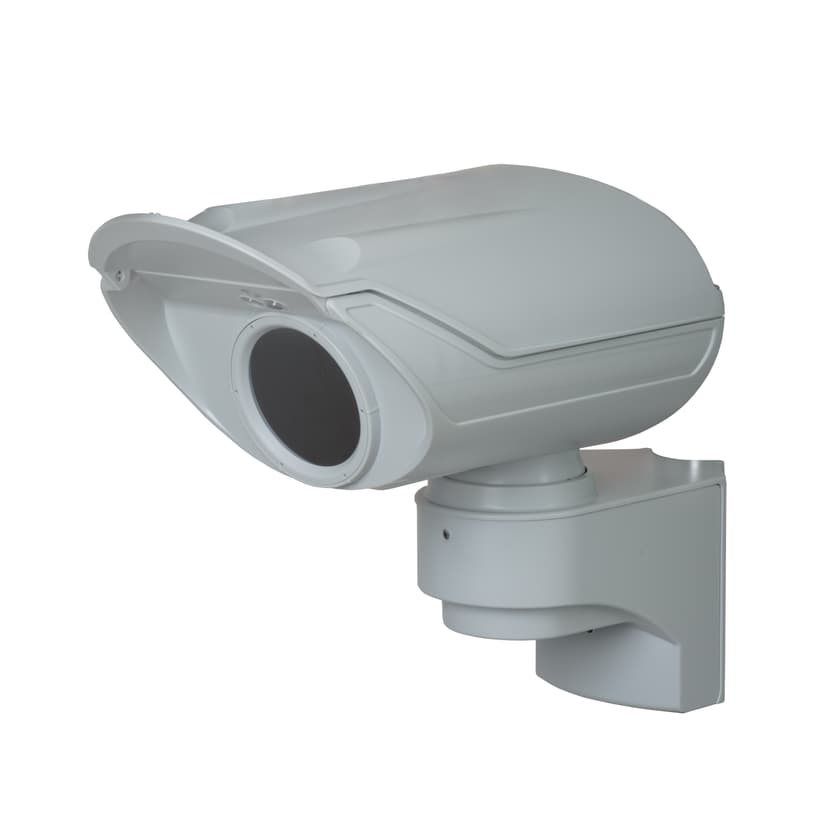

PRO-E-45H Ext PIR m-rng curtain, heater

Partcode:
  • V54533-Z115-A100
The PRO-E-45H is suitable for harsh outdoor applications requiring a medium range curtain view. The detector has a universal mounting facility for walls or poles. Sophisticated tamper detection provides a secure method of external detection. The detector has an internal cable management system. The detector has quick set up function, with options for additional
Technical dataDocumentationCertificatesImport & Export

  • Supply voltage

    10.5 - 30 VDC, 24VAC+/- 15% auto-sensing, excluding heater

  • Detection characteristics / range

    60m x 3.9m (Lx W) -1m and up to +8m near surrounding area

  • Sensitivity adjustment

    20% - 140% (% of standard)

  • Weight

    0.98Kg

  • Dimensions (L x W x H)

    358mm x 188mm x 290mm

  • Cable entry

    diameter 2 x 4-7mm

  • Mounting

    Wall and pole mounting, cable management bracket included.

  • Housing material

    Luran® (ASA)

  • Environmental class

    Designed to fulfil EN50131-1 / IEC62642-1:2010 Environmental Classification (Class IV - Outdoor)

  • Housing protection

    IP65

  • Operating temperature range

    HDPE - filter version without heater -20⁰C to +60⁰C Silicon wafer version with heater -20⁰C to +60⁰C

  • Sensitivity

    Default sensitivity 40%, 75% & 100% (% of standard)

  • Alarm output

    Programmable for IR Alarm, 360 Protect & Anti-mask

  • Operating temperature

    -20⁰C bis +60⁰C
