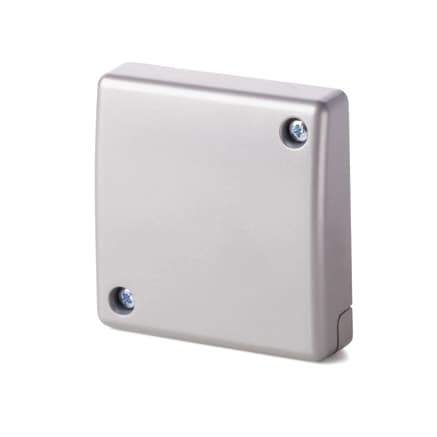

GM710 Seismic detector
Partcode:
- V54534-F106-A100
The GM710 seismic detector is specifically designed for cost-sensitive applications on steel and reliably detects break-in attempts
with mechanical and thermal attack tools. Intelligent signal processing enables the level of detection sensitivity to be
custom-set, thereby reducing the risk of false alarms. The anti-tamper for the detector cover will detect opening of the detector,
and the anti-tamper on the back of the detector will detect forcible removal.
Vanderbilt`s powerful GM7xx- series is the result of over 45 years engineering experience in the field of seismic detectors. Our
products are specifically designed for round-the-clock monitoring of safes, ATMs, strong rooms or any other environment with a high
concentration of valuable assets or dangerous goods.
All known types of intruder attacks generate unique vibration patterns. Their characteristic values such as timing, frequency and
amplitude are detected and analysed using Vanderbilt`s patented Senstec® technology. This technology also ensures that
environmental disturbances are ignored, and false alarms eliminated.
Power supply
8 - 16 VDC (12 V nominal)
Alarm output relay
Opens on alarm, 30 VDC / 100 mA
DIP switch settings
4 levels fixed
Housing protection (EN 60529)
IP43
Operating temperature
-40°C ~ +70°C
Approval
UL, CCC, RCM, PD6662
Dimensions (W x H x D)
89 x 89 x 22 (mm)
Weight
0.285 kg
Current consumption
2.5 mA (rms) 3.5 mA (max. peak)
