spck620.100

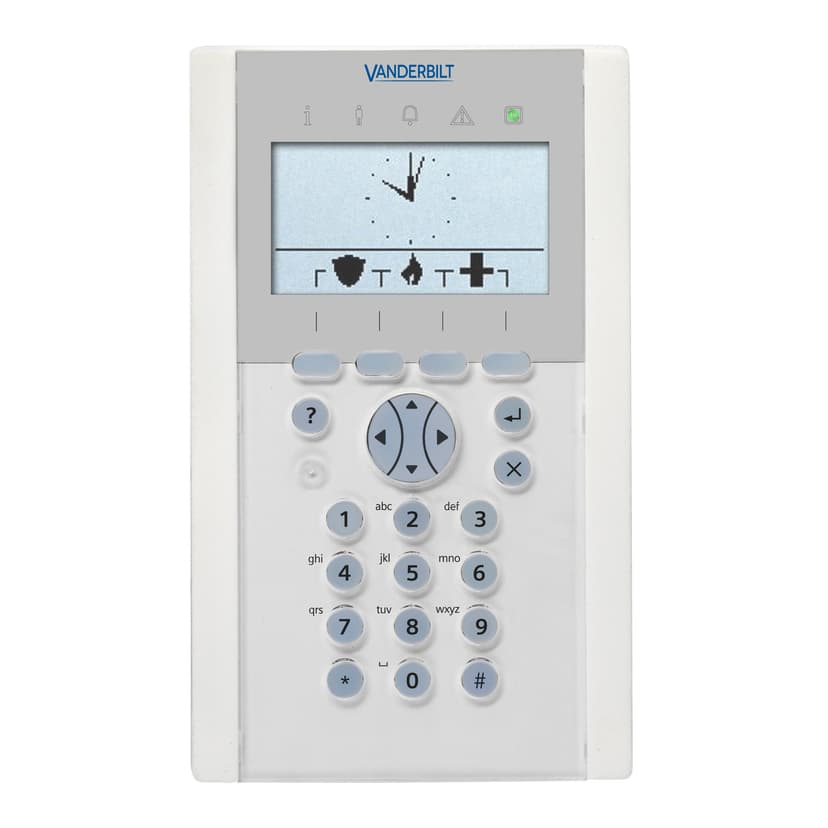

SPCK620.100 Comfort Keypad

Partcode:
  • V54543-F110-A100
The SPCK620.100 comfort keypad is ideal to operate single area and multi area applications in a user friendly way. The 4 soft keys and the multi dimensional navigation key allow an easy operation with a minimum of operation steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. Customer logo, emergency or quick set functions can be displayed in idle state. The functionality can be enhanced with the SPCE110 key switch expander or the SPCE120 indication expander.
Technical dataDocumentationSoftwareCertificatesImport & Export

  • LCD Display

    128 x 64 pixels (approx. 6 x 20 characters)

  • LED Indicators

    5 status LEDs

  • Interfaces

    X-BUS (in, out)

  • Tamper contact

    Front / back tamper

  • Operating voltage

    9.5 ~ 14 VDC

  • Operating current

    Max. 155 mA at 12 VDC (backlight, LEDs, sounder operated)

  • Quiescent current

    Max. 55 mA at 12 VDC

  • Mounting

    Flat surface, wall-mounted

  • Operating temperature

    -5 ~ +40 °C

  • Colour

    RAL 9003 (signal white)

  • Weight

    0.380 kg

  • Dimensions (W x H x D)

    112 x 185 x 28 (mm)

  • Housing

    Plastic housing (Polycarbonate)

  • Approval

    EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C
