Intrusion/Systems/Auxiliary/Warning Devices/External
WSIR-EXT image

WSIR-EXT-O Wireless ext. bell orange

Partcode:
  • V54538-F116-A300

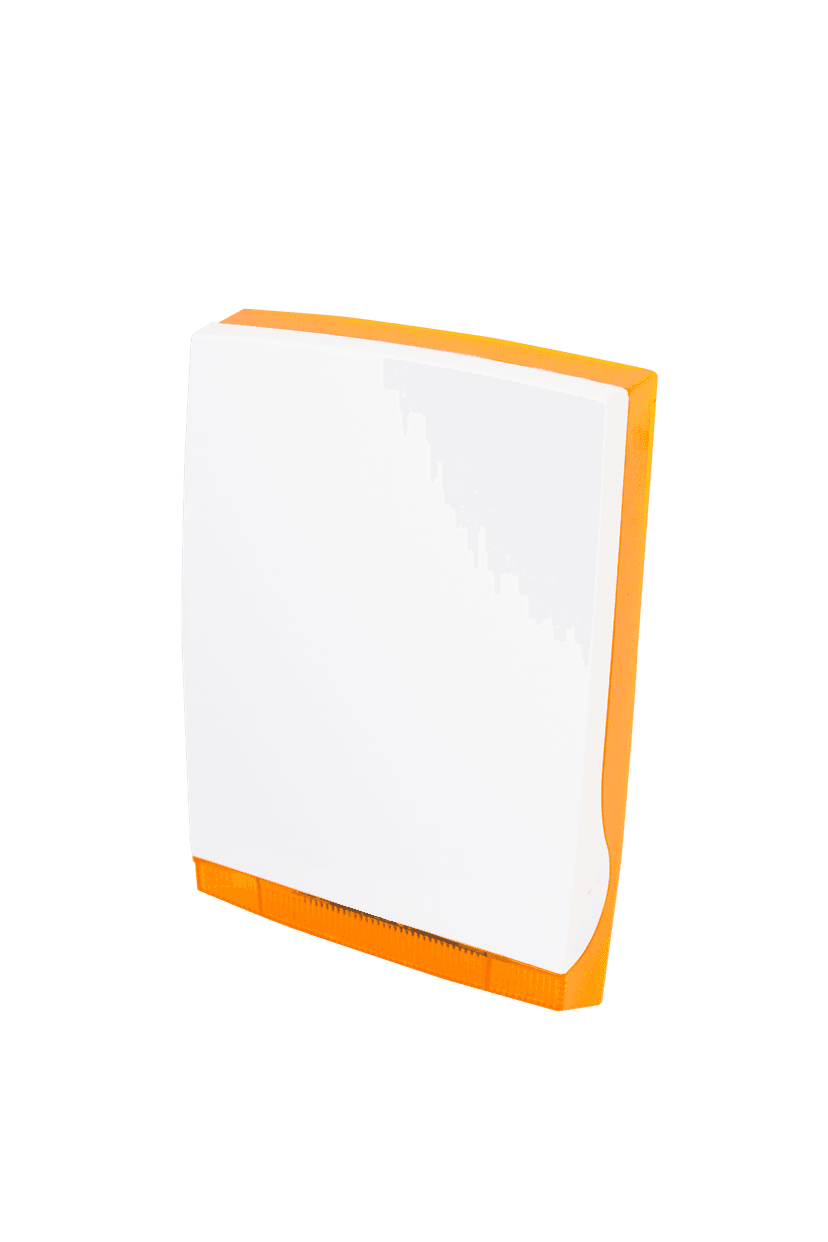

The WSIR-EXT-O is a two way wireless external sounder/beacon with an orange lens. The audible and visual outputs are independently controlled from the acre Intrusion panel.
Technical dataDocumentationCertificatesImport & Export

  • Automatic power saving

    Yes

  • Battery type

    1 x 3.6v Lithium battery pack

  • Operating temperature

    -25°C to +70°C

  • Transmit power

    ~ 14dBm

  • Event transmission

    Alarm, Tamper, Supervision, Low battery

  • Supervision time

    7 minutes (default)

  • IP

    IP54/IK07

  • Battery life

    up to 5 years, 1 activation per month

  • Battery low

    2.8V, cut off at 2.5V

  • Current consumption

    Standby average: 110 uA external power 9-12 VDC standby 3mA alarm 0.83 A

  • Dimensions (L x W x H)

    316mm x 205mm x 83mm

  • External audible indicator

    102dB at 1m

  • External visual indicator

    140 lm at source

  • Frequency

    868MHz

  • Range

    up to 500m transmission range in open air

  • Tamper protection

    Front cover open and removal

  • Weight

    1.10kg nett
