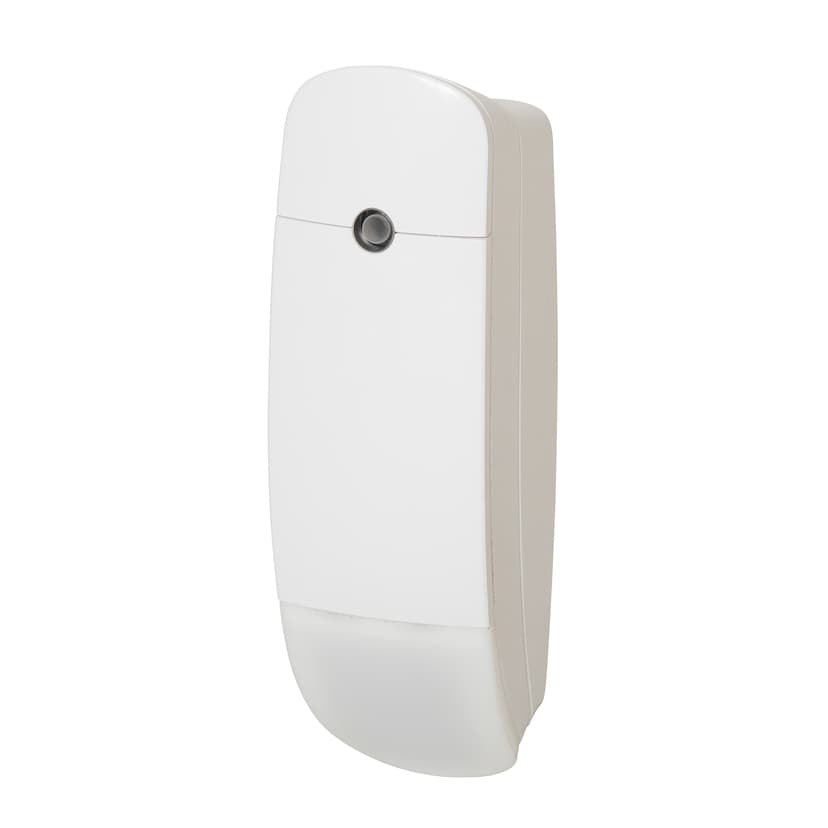

WPIR-CRT Wireless curtain PIR detector
Partcode:
- V54538-F110-A100
The WPIR-CRT wireless detector is a passive infra curtain motion detector which is supported by the acre Intrusion system. The device has a 12m detection range and a 6° detection angle. The device has firmware configurable settings such as Sensitivity, Pulse Count, Supervision Time and LED behavior.
Weight
0.110 kg
Dimensions (L x W x H)
103 x 31.5 x 34.5 (mm)
Operating temperature
10°C ~ +50°C
Current consumption
Standby ~11 μA Receive mode ~24 mA Transmit mode ~45 mA
Detection characteristics / range
12 meter @ 6°
