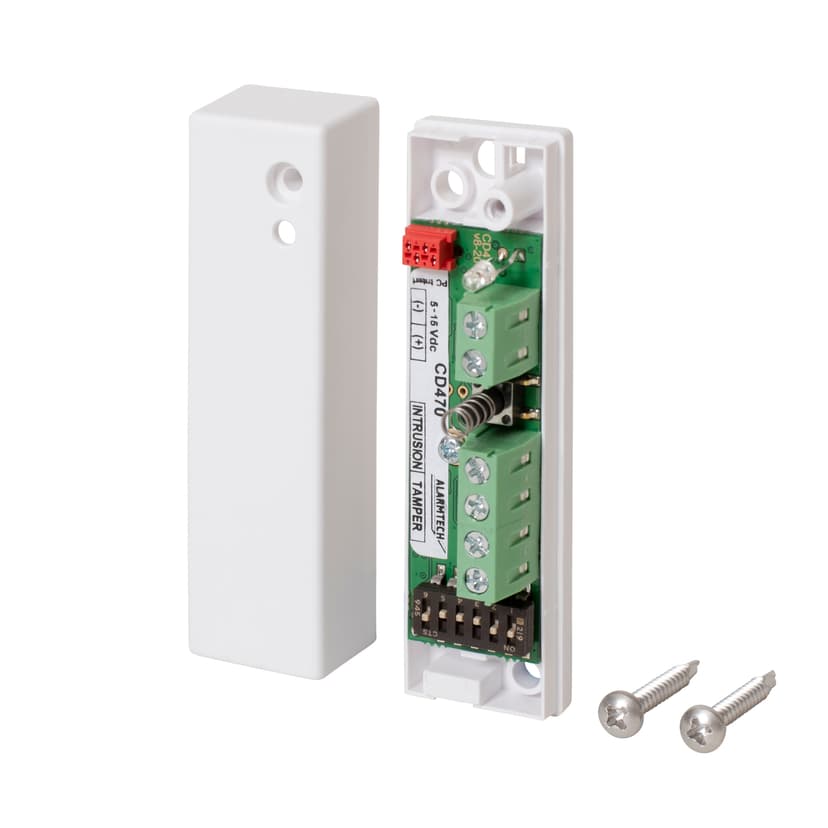

ES470 Shock and Vibration Sensor

Partcode:
  • V54543-Z109-A100
The ES470 is a vibration/shock sensor that offers reliable monitoring for three different types of attack. (I) An integration channel for weak attack signals over a long duration (II) A counter channel that monitors the amount of stronger signals (III) A gross attack channel for a very strong signal The ES470 connects direct to a standard detection zone and does not require a dedicated interface unit. The ES470 has a detection radius of up to 3m and numerous European approvals. The ES470 has independent outputs for alarm <(>&<)> tamper and a sensitivity adjustment for precise monitoring.
  • Approval

    EN50131-2-8 Grade 3

  • Dimensions (W x H x D)

    23 x 20 x 80 (mm)

  • Operating temperature

    -40C ~ +55C

  • Operating voltage

    8 - 15 VDC

  • Tamper protection

    Lid & removal
